SKU: N/A Category: SLED High Bay Light

SustainabLED High-Bay HBS Series 160W

€122.78 – €134.83

SustainabLED High-Bay HBS Series | Characteristics Application

Data Centres, Warehouses, Airports, Train and Bus Stations, Workshops, Shopping Malls, Supermarkets, Sports Centres – in fact, in the anywhere in the world that needs reliable powerful lighting with quick hot swap maintenance in-built.

The Big Advantages

Sustainably Built for Parts Upgrading
No End of Life – Exchange parts as necessary
Ultra-low running cost
7 years warranty as STANDARD
In the extremely unlikely event of a failure, swap the part for an exchange- fraction of the cost
Shipping Costs reduction by 60% – due to separation driver
Designed in Ireland
Circular Economy Compliant

Download the complete fact file on the 240W here

Dimming Mode

Clear

Description

The SHB series from SustainabLED is specifically designed around sustainability and even more so, repairability, with reusable parts for exchange and refurbishing rather than recycling. It comes in 160W and 240W versions. Efficacy > 200 LM/W delivering circa 30,000 Lm and 50,000 Lm respectively.

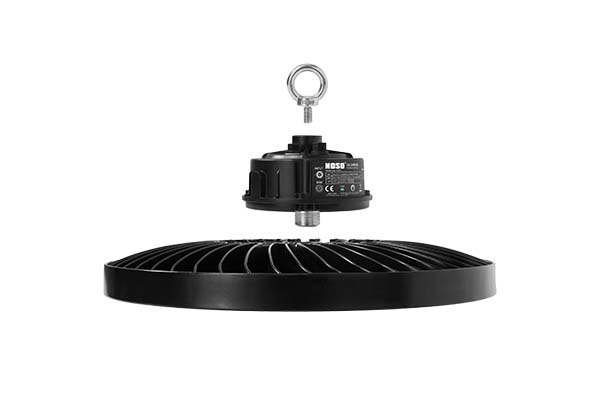

It’s incredibly economical to run. The main body of the lamp separates from the driver by way of a precision screw- thread mechanism that facilitates robust precision physical and electrical connection to the driver.

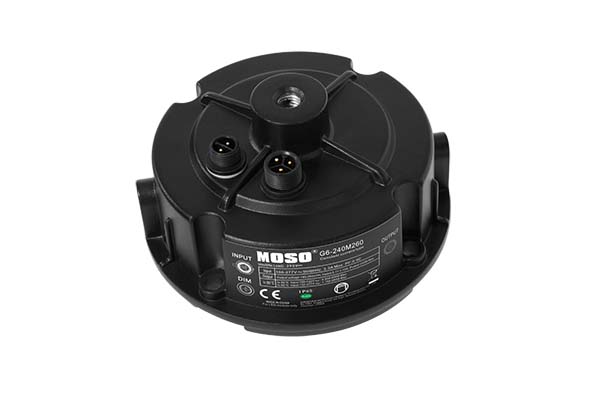

Drivers are top brand Moso or Sosen with 95% efficiency and dimming comes in two options – DALI2 and 0- 10V dimming. are available.

IP65; ambient temperature: -10°C to +70°C; Dimensions: 400 x 400 x 60 mm. Weight: 4.6 kg. Packing is in 4’s in outer carton 40 x 40 x 30 and Gross Weight is 17K. Drivers are packed in 12’s and Gross Weight per carton is 16Kg.

Key Features and Benefits

Engineered for Excellence and crafted for Longevity – 7 years standard warranty
Designed for Sustainability – replaceable and reusable parts for long life extension
Exchange parts for easy upgrade to NEW in later years – Low low cost
Best of breed branded drivers > 95% efficiency for long continuous performance
Dali 2 or 0-10V dimming options
Minimum Stocking – 240W driver with work with all light plate options.
Highest Performance – 204 Lumens/watt – Incredibly low running costs (>30% less than average)
886 High performance LED chips running very cool at 1/3 nominal power for extremely long life.
Gold Plated connectors for operation in harshest of conditions
Colour Rendering Index: Ra>80
Colour Temperature: Standard 5700K (any CCT available to order)
Ingress Protection: IP65
Environmental Operation: -10 to +50 degrees Celsius
Low Shipping Cost – Environmental friendly – 20’ container holds > 2000 pcs (conventional 800pcs)
In HIGHLY UNLIKELY event of a malfunction, hot-swap exchange part guarantees up and running in 60 seconds at a fraction of the cost of a whole new lamp. Zero Tools, zero skills – send apprentice.
Circular Economy Compliant – reusable parts – recycling unnecessary.

Dimensions: 400 x 400 x 60 mm. Weight: 4.6 kg. Packing is in 4’s in outer carton 40 x 40 x 30 and Gross Weight is 17K. Drivers are packed in 12’s and Gross Weight per carton is 16Kg.

Interested in bulk orders?
For orders of 50+ units, please contact: partner@sustainabled.io for dedicated support and volume pricing.

Additional information

Dimming Mode	0-10V, DALI 2
